Arista AVD Workflow

By: Nicholas D'ambrosio, Advanced Services Engineer, Southwest Region

In this month's newsletter, we are introducing a new type of article. One in which you can follow along in your environment! Nicholas has written a tutorial on using an AVD Workflow to deploy network configurations. Follow the tutorial to gain practical knowledge on our AVD tools!

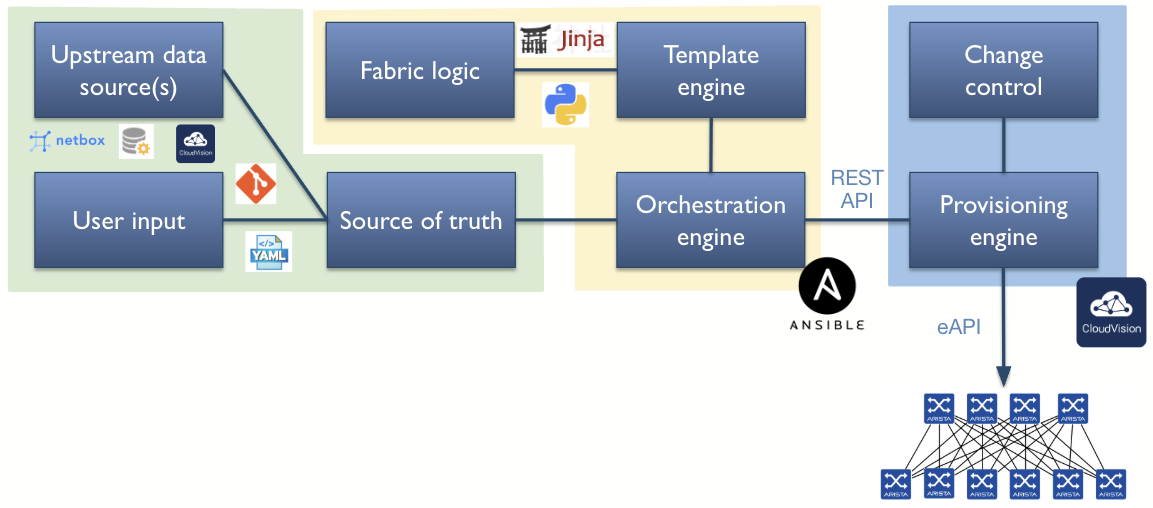

AVD Workflow Overview

This document outlines the workflow for using Arista Validated Designs (AVD) to automate and deploy network configurations to EOS devices via CloudVision as-a-Service (CVaaS).

Inventory Structure

Below is a basic Ansible file structure breakdown:

project_root/
├── inventory.yml              # Main inventory file
├── group_vars/                # Global Ansible groups directory
│   ├── all.yml                # Global Ansible variables YAML file
│   ├── <group>.yml            # Group variables YAML file
│   └── custom-head.html       # Custom header/footer
├── host_vars/                 # Global Ansible hosts directory
│   └── <device-hostname>.yml  # Host-specific variables
├── build.yml                  # Playbook to render configuration
└── deploy.yml                 # Playbook to push configuration to CVaaS/CVP

Here is an example of an Ansible inventory file that can be used to define your AVD topology. This YAML file defines the topology (fabric) and host relationships:

### AVD Topology inventory.yml
all:
  children:
    FABRIC:
      children:
        SPINES:
          hosts:
            spine1:
            spine2:
        LEAFS:
          hosts:
            leaf1a:
            leaf1b:
    NETWORK_SERVICES:
      children:
        LEAFS:
        SPINES:
    NETWORK_PORTS:
      children:
        LEAFS:
        SPINES:

Role of Variables

group_vars/all.yml - Global All 'Shared' Variables

Global variables shared by all devices. This is where you store Arista eAPI and SSH connection parameters that Ansible can reference for all devices in the inventory file.

ansible_user: admin
ansible_ssh_pass: "{{ vault_ansible_password }}"
ansible_network_os: eos
ansible_connection: network_cli
ansible_become: yes
ansible_become_method: enable
ansible_become_password: admin

group_vars/FABRIC.yml: - Top Level - AVD Configuration Variables

Variables applied to all devices under the inventory hierarchy. This could include the FABRIC, DATACENTER, or CAMPUS top layer of the architecture. These configurations define device groups, mLAG settings, uplinks, and common domain configurations.

# CloudVision TerminAtter definitions
cvp_instance_ips:
  - apiserver.arista.io
terminattr_smashexcludes: "ale,flexCounter,hardware,kni,pulse,strata"
terminattr_ingestexclude: "/Sysdb/cell/1/agent,/Sysdb/cell/2/agent"
terminattr_disable_aaa: true
terminattr_cvaddr: "apiserver.arista.io:443"
terminattr_cvauth: "token-secure,/tmp/cv-onboarding-token"
terminattr_cvvrf: MGMT
terminattr_taillogs: true

# Spine Switches
l3spine:
  defaults:
    platform: cEOSLab
    spanning_tree_mode: mstp
    spanning_tree_priority: 4096
    loopback_ipv4_pool: 172.16.1.0/24
    mlag_peer_ipv4_pool: 192.168.0.0/24
    mlag_peer_l3_ipv4_pool: 10.1.1.0/24
    virtual_router_mac_address: 00:1c:73:00:dc:01
    mlag_interfaces: [Ethernet55/1, Ethernet56/1]
  node_groups:
    - group: SPINES
      nodes:
        - name: spine1
          id: 1
          mgmt_ip: "192.168.101.13/24"
        - name: spine2
          id: 2
          mgmt_ip: "192.168.101.14/24"

# IDF - Leaf Switches
l2leaf:
  defaults:
    platform: cEOSLab
    mlag_peer_ipv4_pool: 192.168.0.0/24
    spanning_tree_mode: mstp
    spanning_tree_priority: 16384
    inband_mgmt_subnet: 10.10.10.0/24
    inband_mgmt_vlan: 10
  node_groups:
    - group: IDF1
      mlag: true
      uplink_interfaces: [Ethernet51]
      mlag_interfaces: [Ethernet53, Ethernet54]
      filter:
        tags: [ "110", "120" ]
      nodes:
        - name: leaf1a
          id: 3
          mgmt_ip: "192.168.101.111/24"
          uplink_switches: [SPINE1]
          uplink_switch_interfaces: [Ethernet1]
        - name: leaf1b
          id: 4
          mgmt_ip: "192.168.101.112/24"
          uplink_switches: [SPINE2]
          uplink_switch_interfaces: [Ethernet1]

group_vars/SPINES.yml & LEAFS.yml - Device Type Variables

These files specify the category (spine or leaf) that switch hosts belong to in the topology. The type designation aligns with parameters outlined in the FABRIC.yml variables file.

---
### group_vars/SPINES.yml
type: l3spine     # Must be either spine|l3spine

### group_vars/LEAFS.yml
type: l2leaf     # Must be l2leaf

group_vars/NETWORK_SERVICES.yml - SVI Configuration

Variables for applying Switched Virtual Interfaces (SVI) to the default routing instance. Each SVI creates an associated VLAN configuration that is "tagged" for filtering trunk links between switches.

---
### group_vars/NETWORK_SERVICES.yml
tenants:
  - name: FABRIC
    vrfs:
      - name: default
        svis:
          - id: 110
            name: 'IDF1-Data'
            tags: ["110"]
            enabled: true
            ip_virtual_router_addresses:
              - 10.1.10.1
            nodes:
              - node: SPINE1
                ip_address: 10.1.10.2/23
              - node: SPINE2
                ip_address: 10.1.10.3/23
          - id: 120
            name: 'IDF1-Voice'
            tags: ["120"]
            enabled: true
            ip_virtual_router_addresses:
              - 10.1.20.1
            nodes:
              - node: SPINE1
                ip_address: 10.1.20.2/23
              - node: SPINE2
                ip_address: 10.1.20.3/23
          - id: 130
            name: 'IDF1-Guest'
            tags: ["130"]
            enabled: true
            ip_virtual_router_addresses:
              - 10.1.30.1
            nodes:
              - node: SPINE1
                ip_address: 10.1.30.2/23
              - node: SPINE2
                ip_address: 10.1.30.3/23

group_vars/NETWORK_PORTS.yml - Port Configuration

Variables for applying switch port-level configuration in the form of profiles, including VLAN assignment, 802.1x, POE, and other features.

---
### group_vars/DC1_NETWORK_PORTS.yml

### Port Profile
port_profiles:
  - profile: PP-DOT1X
    mode: "trunk phone"
    spanning_tree_portfast: edge
    spanning_tree_bpduguard: enabled
    poe:
      priority: critical
      reboot:
        action: maintain
      link_down:
        action: maintain
      shutdown:
        action: power-off
      limit:
        class: 4
    dot1x:
      port_control: auto
      reauthentication: true
      pae:
        mode: authenticator
      host_mode:
        mode: multi-host
        multi_host_authenticated: true
      mac_based_authentication:
        enabled: true
      timeout:
        reauth_period: server
        tx_period: 3
      reauthorization_request_limit: 3

# ---------------- IDF1 ----------------
# Assign switch interfaces the port porfile above
  - switches:
      - LEAF1[AB] # regex match LEAF1A & LEAF1B
    switch_ports:
      - Ethernet1-48
    description: IDF1 Standard Port
    profile: PP-DOT1X # Assigned port porfile
    native_vlan: 110
    structured_config: # Direct injection of EOS CLI-equivalent configuration into the interface, used for edge cases or features not abstracted by AVD.
      switchport:
        phone:
          trunk: untagged
          vlan: 120
    dot1x:
      authentication_failure:
        action: allow
        allow_vlan: 130

The global variables are now in place and ready for the next steps.

Build Playbook

---
# build.yml
- name: Build Configs
  hosts: FABRIC
  gather_facts: false
  tasks:

    - name: Generate AVD Structured Configurations and Fabric Documentation
      ansible.builtin.import_role:
        name: arista.avd.eos_designs

    - name: Generate Device Configurations and Documentation
      ansible.builtin.import_role:
        name: arista.avd.eos_cli_config_gen

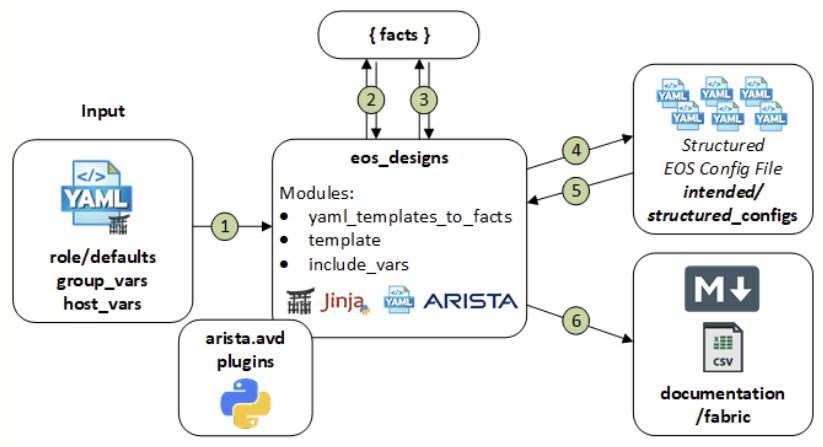

arista.avd.eos_designs

Purpose: Generates structured configuration data models from your inventory (inventory.yml, group_vars, and host_vars) and builds fabric-wide documentation.

Outputs:

• YAML data structures per device under structured_configs/
• Markdown-based documentation in documentation/fabric/

Include:

• Interface assignments
• BGP/EVPN settings
• VLANs/SVI definitions
• Underlay/Overlay routing logic

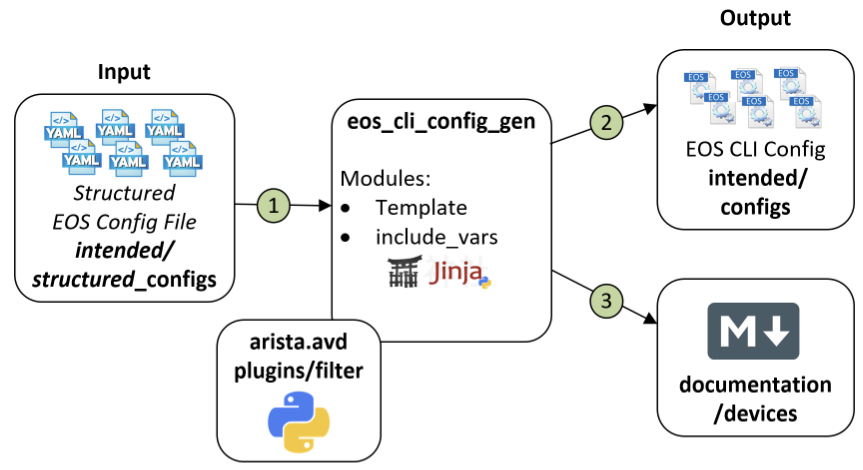

arista.avd.eos_cli_config_gen

Purpose: Converts structured config output from eos_designs into CLI-ready EOS configurations using Jinja2 templates.

Outputs:

• Flat text configuration files per device in intended/configs/
• Optionally, intended/structured_configs/ for CVP Studio

Include:

• Complete running-config per device
• Platform-specific syntax (MLAG, port-channel, BGP, etc.)
• Ready to push to EOS or CVaaS

How They Work Together

eos_designs:

• Processes inventory and variables
• Computes design logic (interface IPs, routing adjacencies, etc.)
• Exports structured YAML data

eos_cli_config_gen:

• Reads structured YAML
• Renders Jinja2 templates to EOS CLI syntax
• Produces config files and optional configlets

💡 Key Concept:

• eos_designs = Defines "What should this network do?"
• eos_cli_config_gen = Generates "What CLI is needed to implement it?"

Example Output

(venv) root@057f4a3b7a6a:/app/examples/campus-fabric# ansible-playbook -i inventory.yml build.yml

PLAY [Build Configs] **************************************************************************************************************************************************************************************

TASK [arista.avd.eos_designs : Verify Requirements] *******************************************************************************************************************************************************
AVD version 5.1.0
Use -v for details.
ok: [SPINE1 -> localhost]

TASK [arista.avd.eos_designs : Create required output directories if not present] *************************************************************************************************************************
ok: [SPINE1 -> localhost] => (item=/app/examples/campus-fabric/intended/structured_configs)
ok: [SPINE1 -> localhost] => (item=/app/examples/campus-fabric/documentation/fabric)

TASK [arista.avd.eos_designs : Set eos_designs facts] *****************************************************************************************************************************************************
ok: [SPINE1]

TASK [arista.avd.eos_designs : Generate device configuration in structured format] ************************************************************************************************************************
ok: [SPINE1 -> localhost]
ok: [SPINE2 -> localhost]
ok: [LEAF1A -> localhost]
ok: [LEAF1B -> localhost]

TASK [arista.avd.eos_designs : Generate fabric documentation] *********************************************************************************************************************************************
ok: [SPINE1 -> localhost]

TASK [arista.avd.eos_designs : Remove avd_switch_facts] ***************************************************************************************************************************************************
ok: [SPINE1]

TASK [arista.avd.eos_cli_config_gen : Verify Requirements] ************************************************************************************************************************************************
skipping: [SPINE1]

TASK [arista.avd.eos_cli_config_gen : Generate eos intended configuration and device documentation] *******************************************************************************************************
ok: [SPINE1 -> localhost]
ok: [SPINE2 -> localhost]
ok: [LEAF1A -> localhost]
ok: [LEAF1B -> localhost]

PLAY RECAP ************************************************************************************************************************************************************************************************
LEAF1A                     : ok=2    changed=0    unreachable=0    failed=0    skipped=0    rescued=0    ignored=0
LEAF1B                     : ok=2    changed=0    unreachable=0    failed=0    skipped=0    rescued=0    ignored=0
SPINE1                     : ok=7    changed=0    unreachable=0    failed=0    skipped=1    rescued=0    ignored=0
SPINE2                     : ok=2    changed=0    unreachable=0    failed=0    skipped=0    rescued=0    ignored=0

Deploy Playbook

Example deploy playbook using the cv_deploy role to connect to CVaaS:

- name: Deploy Configurations to Devices Using CloudVision Portal
  hosts: DC1_FABRIC
  gather_facts: false
  connection: local
  tasks:
    - name: Push Configuration to CVaaS Studio
      ansible.builtin.import_role:
        name: arista.avd.cv_deploy
      vars:
        cv_server: www.cv-prod-us-central1-c.arista.io
        cv_token: "{{ lookup('env', 'CVP_PASSWORD') }}"

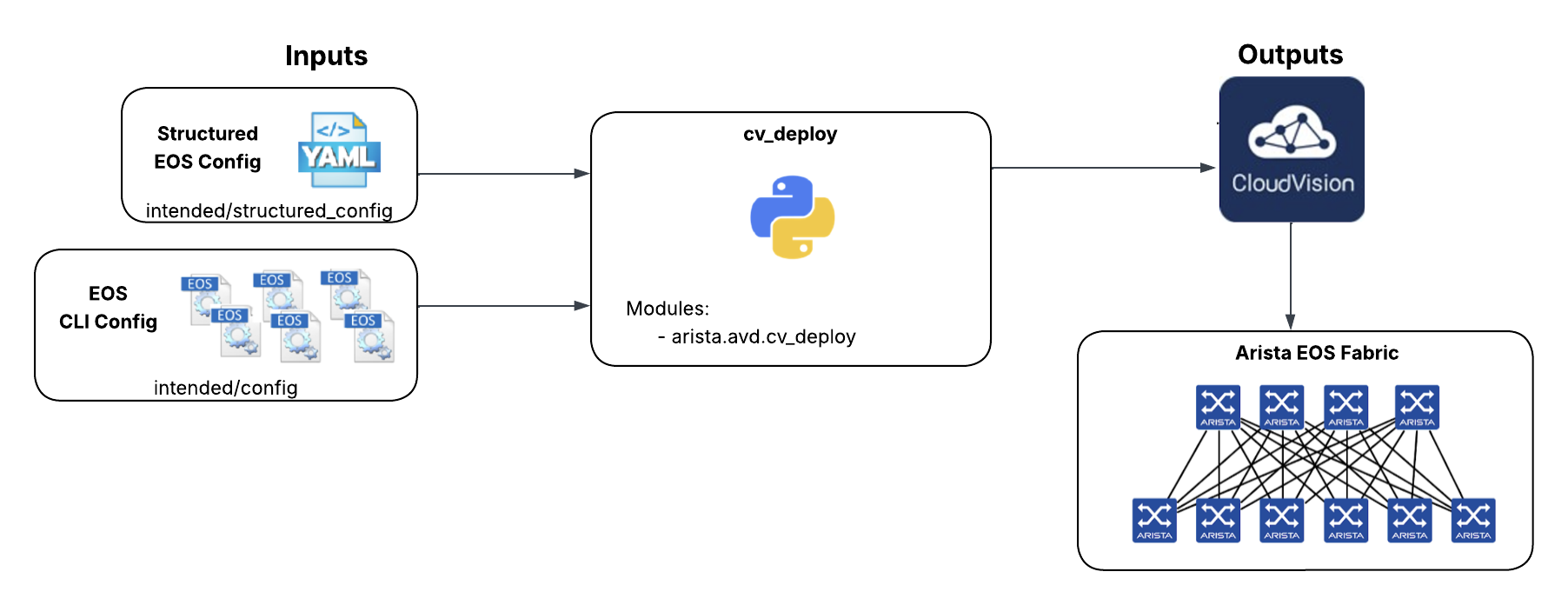

Playbook Functionality

The deploy.yml playbook pushes rendered EOS configurations to CloudVision as-a-Service (CVaaS) using the arista.avd.cv_deploy role:

cv_deploy Role Workflow:

1. Reads intended configs from intended_configs/
2. Connects to CVaaS using cv_server and cv_token
3. Creates/updates configlets in CloudVision Studio
4. Assigns configlets to appropriate devices
5. Optionally initiates config proposals for approval (Studio mode)
6. Verifies assignment and returns status

CVaaS/CVP Authentication

Token Requirements:

1. Create a CloudVision service account in Settings > Users > Service Accounts
2. Generate an API access token
3. Store token as an environment variable or in Ansible Vault

export CVP_PASSWORD="your_cvaas_service_account_token"

The playbook references this token via:

cv_token: "{{ lookup('env', 'CVP_PASSWORD') }}"

Note: The service account requires read/write access to Config Studio, Devices, and Provisioning APIs.

Example Output

(venv) root@057f4a3b7a6a:/app/examples/campus-fabric# ansible-playbook -i inventory.yml deploy-studio.yml

PLAY [Deploy Configurations to Devices Using CloudVision Portal] ********************************************************************

TASK [arista.avd.cv_deploy : Verify Requirements] ***********************************************************************************
AVD version 5.1.0
Use -v for details.
ok: [SPINE1 -> localhost]

TASK [arista.avd.cv_deploy : Deploy device configurations and tags to CloudVision] **************************************************
changed: [SPINE1 -> localhost]

PLAY RECAP **************************************************************************************************************************
SPINE1                     : ok=2    changed=1    unreachable=0    failed=0    skipped=0    rescued=0    ignored=0

(venv) root@057f4a3b7a6a:/app/examples/campus-fabric#

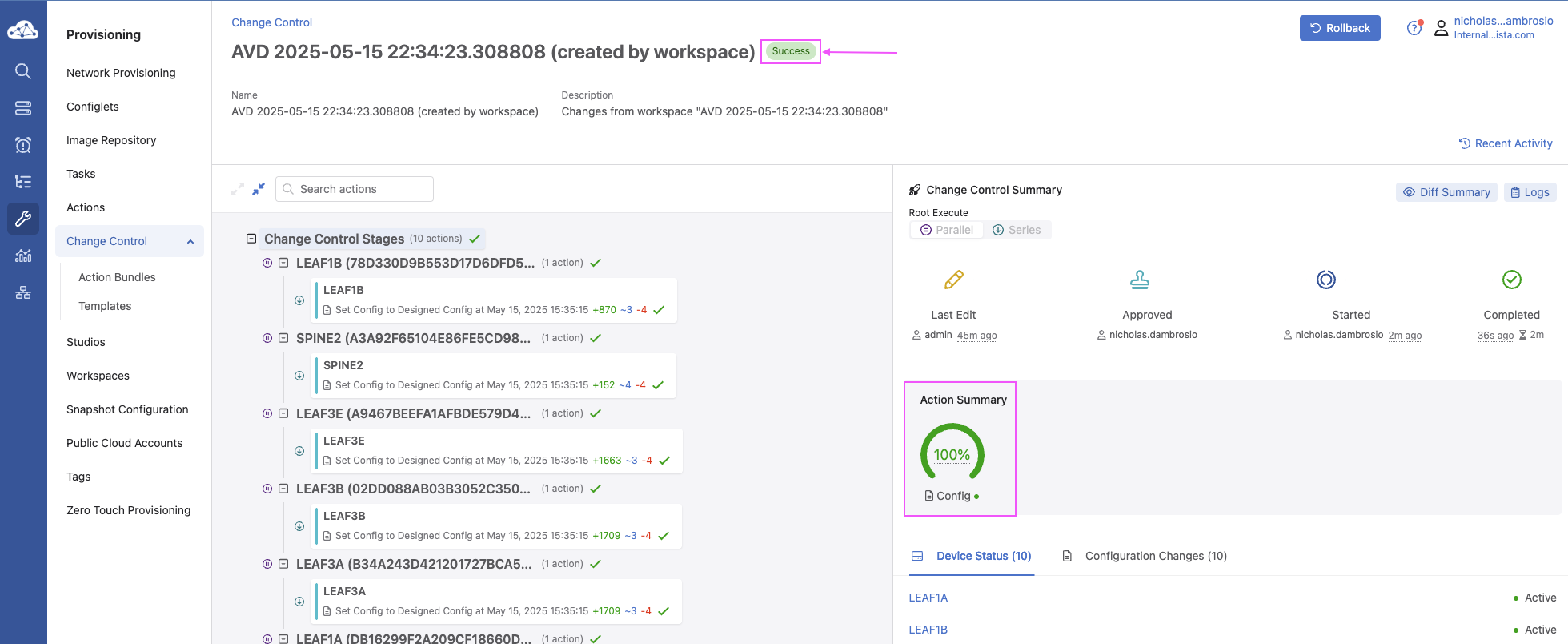

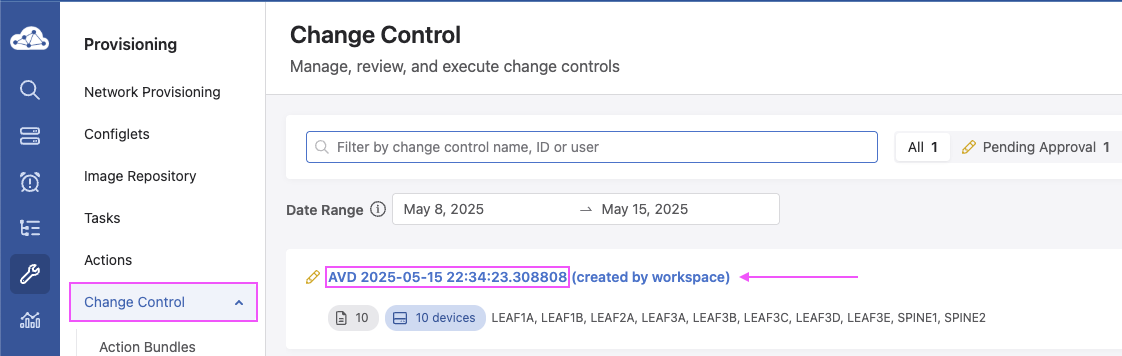

Submit Pending Change Control via CVaaS

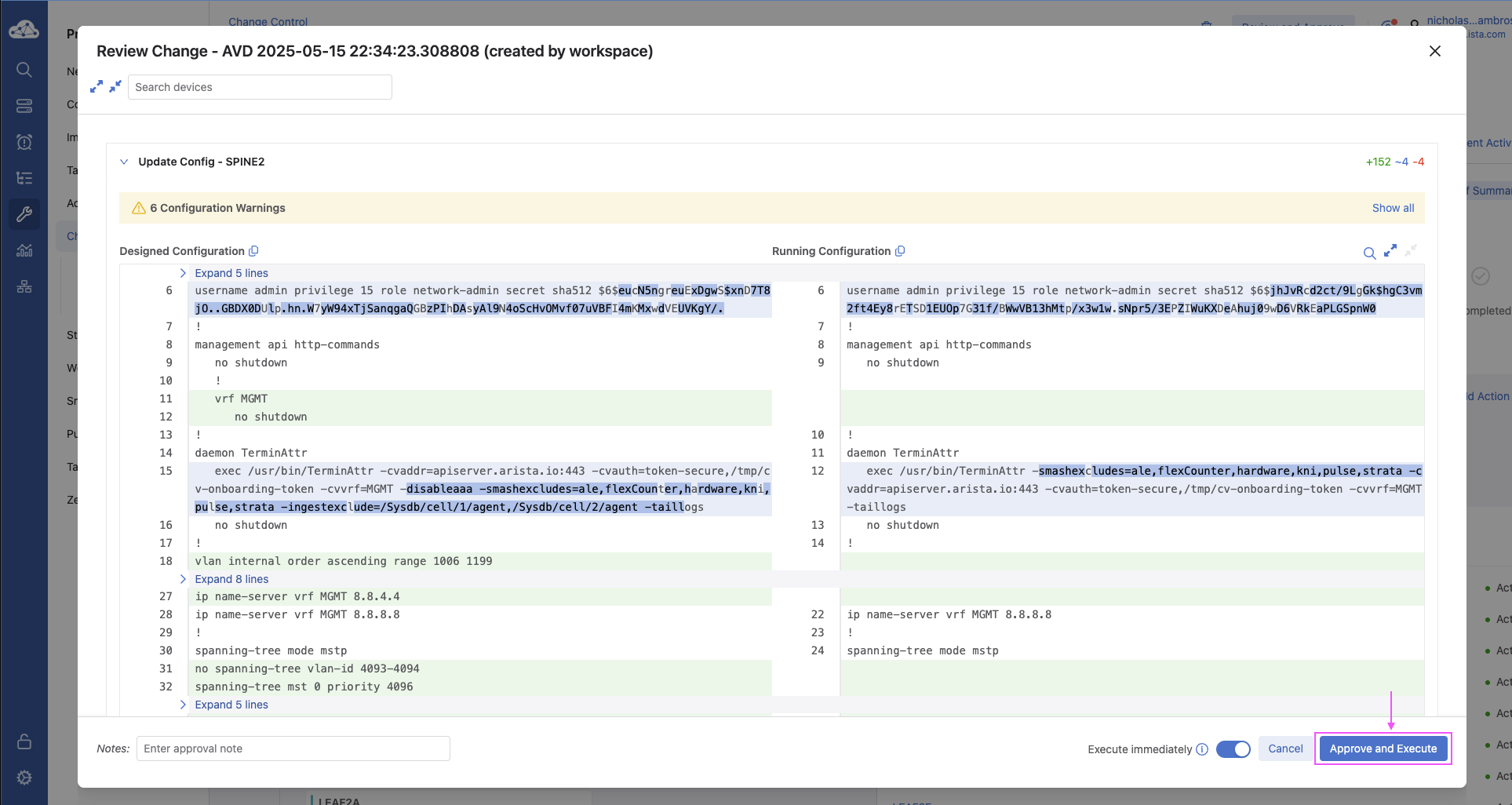

Review Studio Workspace and Pending Change Control

After the deploy.yml playbook completes:

1. A workspace is created in Studio with device-specific configurations
2. A pending change control ticket is generated after validation

Submit Change Control

1. Click on the pending change ticket
2. Review changes
3. Click "Approve and Execute" when ready

CVaaS will push configurations to all switches in the fabric.

References

Getting Started

• Getting Started Guide
• Campus Fabric Example

Arista AVD Ansible Roles

• eos_design
• eos_cli_config_gen
• cv_deploy

Addititional Information

• Arista Netdevops Community
• Arista AVD
• Ansible Galaxy: arista.avd
• Arista ANTA Framework
• Arista PyAVD

---

Upcoming Events

Arista hosts various events throughout the year for you! Members of our team organize these informative events to showcase Arista's ability to not only help improve your network, but to also assist by providing a set of tools to improve your operations! Click on the boxes below to be directed to Arista's website for lists of Webinars and Events.

• Arista Network Webinars Series with Carahsoft



  Date	Name	Description
  June 10	Why Arista?	An introduction to Arista's unique value proposition for federal customers. Explore the core differentiators that set Arista apart in a competitive networking landscape.
  June 10	Why Arista?	An introduction to Arista's unique value proposition for federal customers. Explore the core differentiators that set Arista apart in a competitive networking landscape.
  July 15	Arista Campus Solutions	Discover how Arista is extending its reliable, scalable, and secure networking capabilities to campus environments that are perfect for federal agencies with distributed locations.
  September 9	Positioning Arista to the Federal Government	Learn how to effectively align Arista's solutions with federal IT missions. The session will provide key messaging, solution positioning, and success stories tailored to the government sector.

  Register Here

• TAC Webinar Series

  ---

  We make is easy for you to view products that are of interest, all virtually! Technical memebers of the team showcase outstading explanation of the products. Click below to see our list of Webinars.

  Arista Webinars

• Events

  ---

  Join us in person to get a closer look in our list of produts and solution, as well as get the chance to meet members of the team. Click below to see our list of ipcoming Events.

  Upcoming Events

---

Software Updates

For new code releases, click here

Softwares	Versions	Release Date
EOS	4.33.2.1F 4.33.3F 4.34.0F 4.30.10M	May 14th, 2025 May 2nd, 2025 April 25th, 2025 April 21st, 2025
CVP	Portal 2025.1.1 Appliance 7.0.1 Sensor 1.1.0	May 7th, 2025 January 28th, 2025 March 24th, 2025
DMF	8.4.5	April 28th, 2025
WLAN CV-CUE Wireless Manager	13.0.0-67 18.0.0	December 15th, 2022 December 2024
Arista NDR	5.2.4	August 2024
TerminAttr	1.27.2	April 9th, 2025

---

Software Advisories

Below is a list of advisories that are announced by Arista. To view more details on the specific advisories, please click the links in the middle row.

Name	Advisory Link	Date of Advisory Notice
gNMI Transport	Security Advisory 0117	May 6th, 2025
Time Bound Device Onboarding	Security Advisory 0116	April 15th, 2025
ZTP Admin Privileges	Security Advisory 0115	April 15th, 2025
Malicious Authenticated User	Security Advisory 0114	April 15th, 2025
Secure Boot	Field Notice 0099	April 22nd, 2025
Renaming Arista WAN Routing Models	Field Notice 0098	March 26th, 2025
CloudVision On-Prem Incomplete Database Writes	Field Notice 0097	March 12th, 2025

For a list of the most current advisories and notices, click Here

---

Product Updates

End of Sale notices are listed below.

Device	Name	End Of Sale Date
Software	End of Software Support for EOS 4.28 DMF and CCF Deployments on Accton/ Edgecore Switches EOS-4.34 and later no longer supported on select switches CloudVision Portal 2023.1 Train	March 14, 2025 January 31st, 2025 January 15th, 2025 December 20th, 2024
Module	7500R2 Series Linecards	December 20th, 2023
Access Points	AP Model W-118	November 20th, 2024
DMF	DMF 8.2	May 12th, 2025
Switches	DCS-7020R Series	December 20th, 2024

New Releases of Arista's device are listed below

Device	More Information	Release Date
Arista SWAG	Modern Stacking for Campus	Q3 2025
Arista Multi-Domain Segmentaton Service	Arista MSS	Q3 2024
Arista CV UNO	CloudVision Universal Network Observability	Q1 2024

---

Feel Free to Reach Out To Us For Your Network Needs

We thank you for taking the time to read out newsletter today. Feel free to reach out to your SE or ASE for more information or questions regardsing your network operations. Until next month, have a good one!
